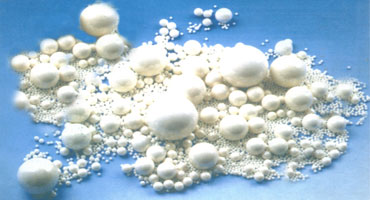

Ceramic Ball
The main products include Tourmaline Ceramic balls, Construction ball, Inert alumina ball, Activated Alumina ball, Perforated Alumina ball, Porous Alumina ball, Embossed Alumina ball, Thermal storage Alumina ball, Refractory and Abrasion-resistant Alumina Grinding ball, ZrO2 Grinding ball etc.
Mainly used in healthy, chemical, petrochemical, coal, gas, fine chemicals, environmental and water treatment etc. It can support and covering packings for catalyst. The character is excellent grinding medium with high density, strength, abrasion performance etc.

Tourmaline Ceramic Balls:
The balls contain Tourmaline or germanium etc composition.
With the character of good heat-storing, high hardness and infrared, it is widely used for Human healthy ,Water treatment, Spa and Environment protection etc.

Color

Size (Diameter mm)

Black
Green
Yellow
Mixed Color

§¶3-5mm, §¶6-8mm, §¶9-12mm,
§¶13-15mm, §¶15-20mm, §¶25-28mm

Ceramic Balls for Chemical Packing:
The series Ceramics Balls are widely used in Chemistry, Petrochemical, Fertilizer, Fine Chemistry and Environmental Protection Industry etc.

Type

Main Specification

Application

Inert Alumina Ball

Al2O3: 20-90%
Bulk Density: 1300-1800Kg/M3
Crushing Strength: 130-5000N/Piece

Support and Covering Packing for catalyst

Activated Alumina Ball

Al2O3: 40-80%
Main content: NiO, CoO, MoO3, WO3, Al2O3
Bulk Density: 900-2000Kg/M3
Abrasion: 5%max

Catalyst support and Covering Packing protect catalyst from poisoning and coking.

Perforated Alumina Ball

Al2O3: 20-90%
Bulk Density: 1100-2600Kg/M3
Free Value: 50%min

Catalyst support and Covering Packing with high free volume and flux and low resistance.

Porous Alumina Ball

Pore size: 0.5-35/ 40-100/110-1000um
Porosity: 15-40%
Crushing Strength: 100-20000N/Piece

Catalyst support and Covering packing or carriers with cellular structure to filter the gum and solid particle impurities in the oil

Embossed Alumina Ball

Al2O3: 20-90%
Bulk Density: 1100-1500Kg/M3
Free Value: 50%min

Catalyst support and Covering packing with high free volume and low pressure drop

Thermal Storage Alumina Ball

Bulk Density: 1200-2600Kg/M3
Thermal Capacity: 850 J/Kg.K
Temperature available: -300-1000¡æ

Thermal storage packing in heat regenerative exchange in air separation

Refractory Alumina Ball

Bulk Density: 1200-1400Kg/M3
Alkali resistance: 85%min
Refractoriness: 1500¡æ min

Catalyst support and covering packing used in shift converter and reformer in ammonia plant.

Size(Diameter mm)

§¶3, §¶6, §¶8, §¶10, §¶13, §¶16, §¶18, §¶20, §¶25, §¶30, §¶40, §¶50 etc.
Accept the customer¡¯ requirement to product the different size and specification.


Abrasion-resistant Alumina Grinding Ball
Excellent grinding medium with high density, strength, abrasion performance which are used in various mills as the customer¡¯s requirements.





Type

Al2O3 %

Density g/cm3

Mohs hardness

Water Absorption %

Abrasion %

Mid Alumina ball

60-65

2.9-2.95

8 min

0.02

0.08

Mid Alumina ball

65-75

2.95-3.0

8-9

0.01

0.01

High Alumina ball

85-95

3.2-3.6

8.5-9

0.005-0.01

0.008-0.01

SiC Grinding ball

60-65

2.8-2.9

8-9

0.05

0.05-0.08

Zirconia (ZrO2) Grinding Ball
With the characters of high density, high abrasion-resistant, Non-pollution, it is widely used forgrinding Pharmaceutical material, Dye stuff, Paint, Electronic material(BaTiO3,BaCO3 etc) and Noble metal treatment etc.





ZrO2 Content %

Bulk Density Kg/L

Gravity

Mohs Hardness

Crashing Strength Mp

Bending strength Mp

Abrasion ppm/hr

Size mm

95

3.3-4.0

5.9-6.05

8-9.5

7500

1000-1200

4

0.2-30mm
